Kurgo Leash/Zipline Combo

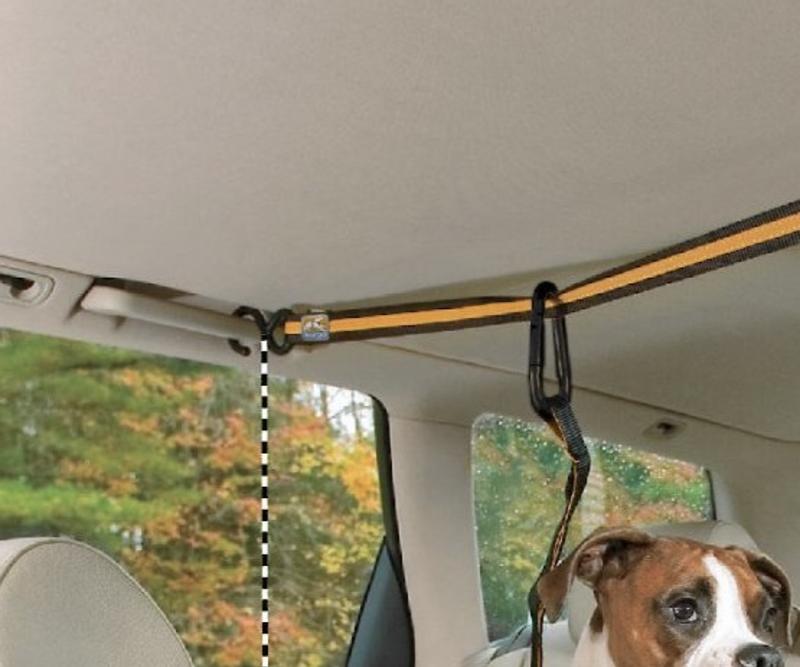

Passenger handle installation:

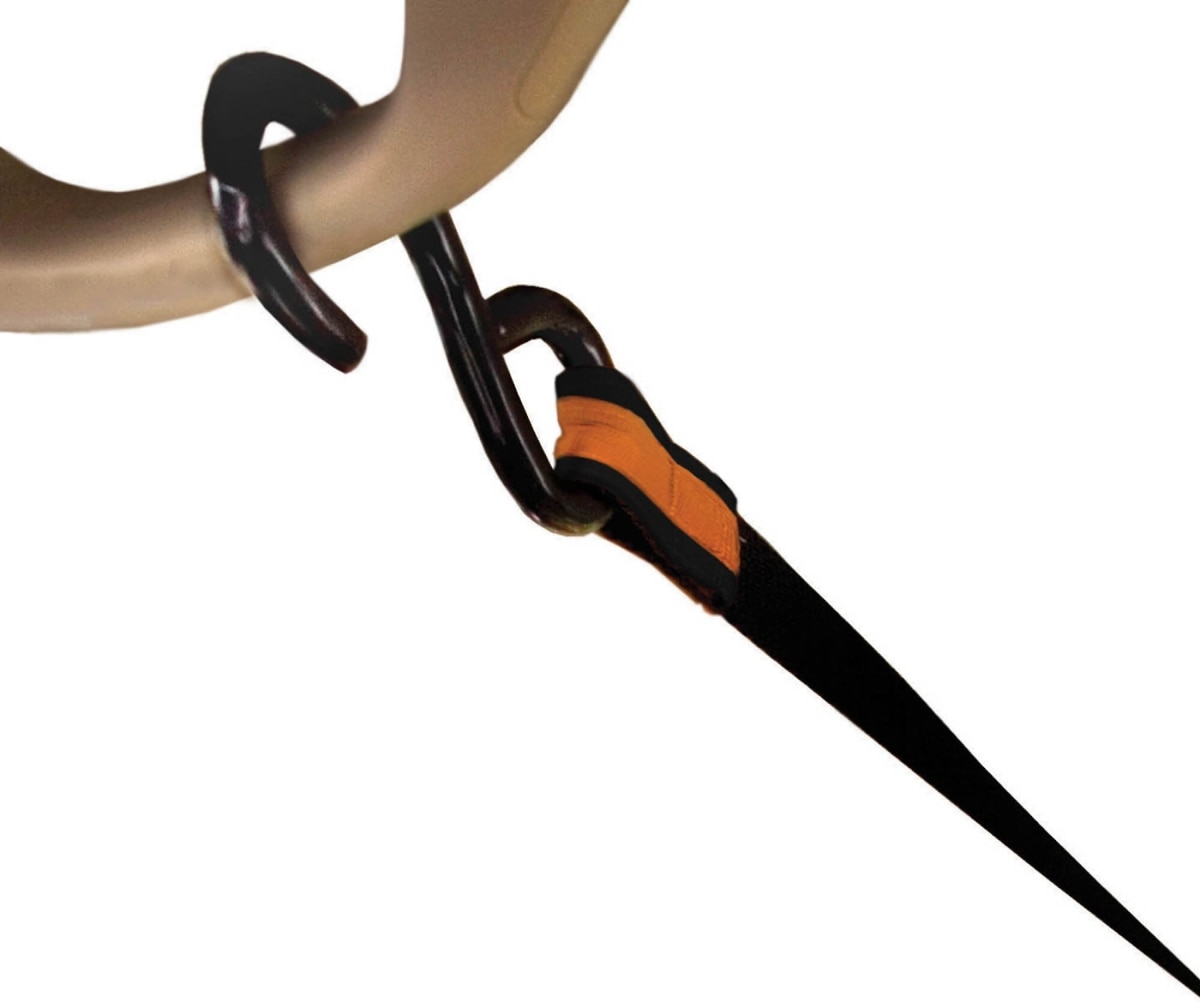

• Place the two s-hooks onto the rear passenger handles.

• Tighten the zip line by pulling the extra webbing through the cam buckle.

• Roll up extra webbing toward cam buckle and secure using bungee and toggle setup.

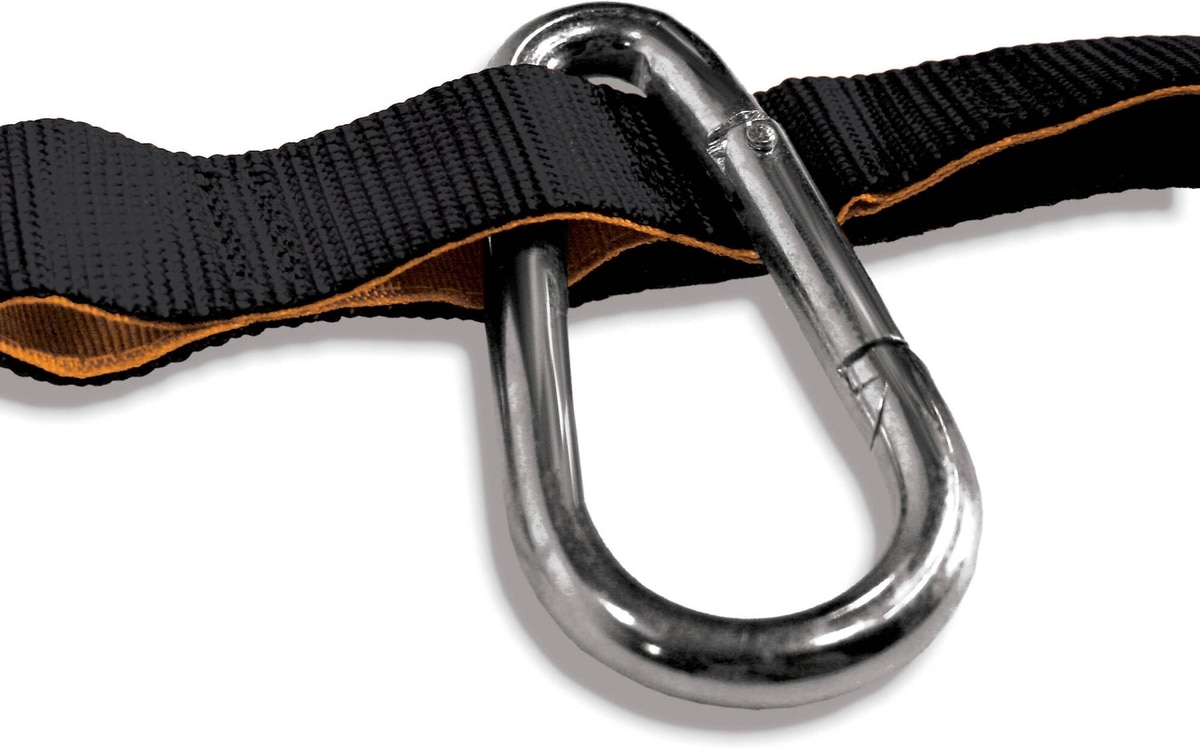

• Place the zip line carabiner onto zip line.

• Attach the harness carabiner to your dog’s harness (not included), or seatbelt tab.

• Locate appropriate leash nook that permits your dog to sit up and lay down then loop onto carabiner attached to the zip line.

Seatbelt installation:

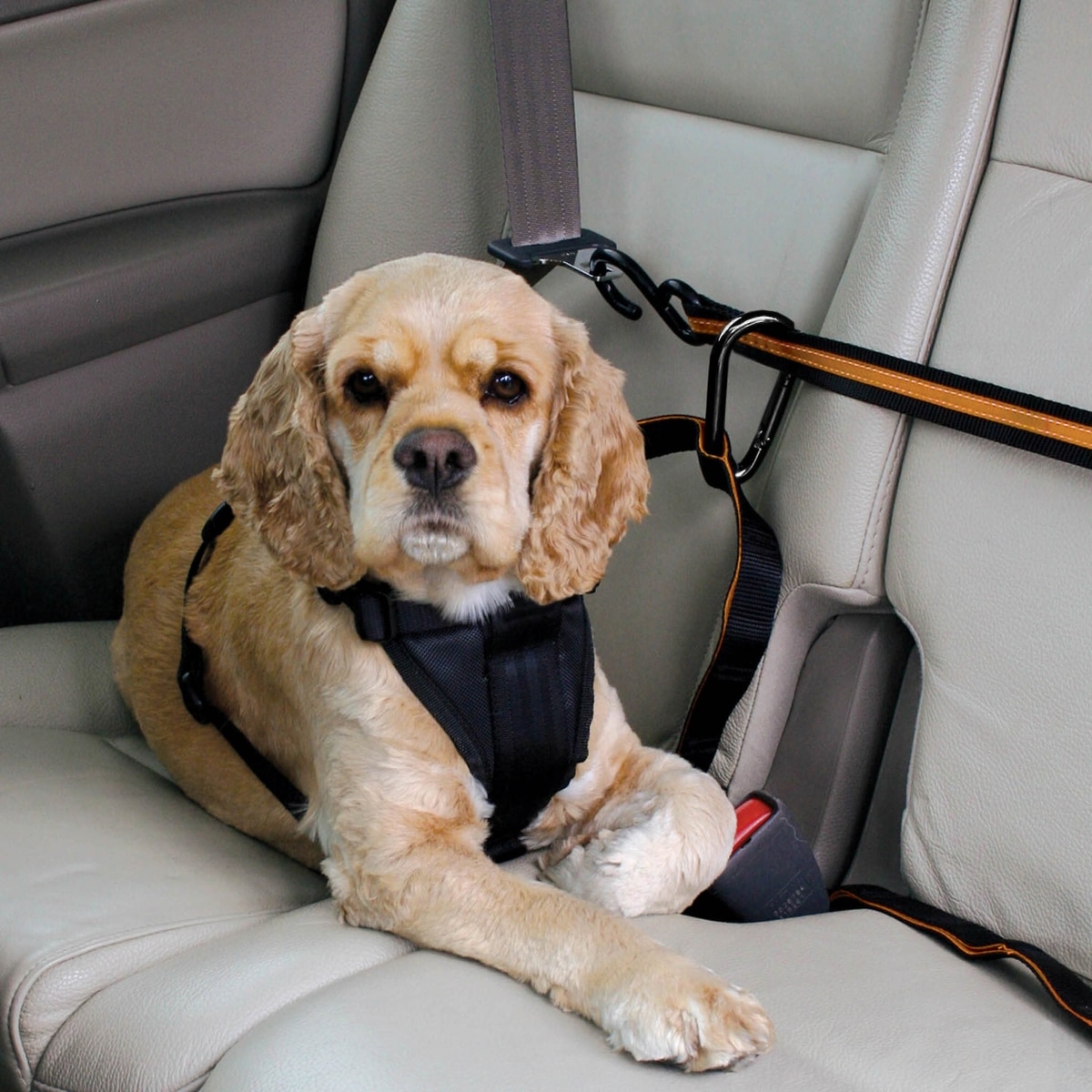

• Buckle seatbelt and attach the zip line carabiner.

• Locate appropriate leash nook that permits your dog to sit up and lay down and loop onto the carabiner attached to the zip line.

• Attach the harness carabiner to dog’s harness (not included) or seatbelt tab.

Cargo hook installation:

• Attach the zip line carabiner to cargo hook in the rear of the vehicle.

• Locate appropriate leash nook that permits your dog to sit up and lay down and loop onto the carabiner attached to the cargo hook.

• Attach the harness carabiner to your dog’s harness (not included) or seatbelt tab.

Cargo hook installation:

• Place the two s-hooks onto the cargo hooks in the rear of the vehicle.

• Tighten the zip line by pulling the extra webbing through the cam buckle

• Roll up extra webbing toward cam buckle and secure using the bungee and toggle set up.

• Place the zip line carabiner on to zip line and harness carabiner onto harness D-ring.

• Locate the appropriate leash nook that permits your dog to sit up and lay down and loop onto the carabiner.

Hand Wash Instructions:

• Brush off loose dirt with a dry brush.

• Spot clean with a damp sponge, cold water, and mild soap. Avoid harsh detergents.

• If necessary, rinse larger area to eliminate excess soap residue.

• Hang to air dry (do not machine dry).

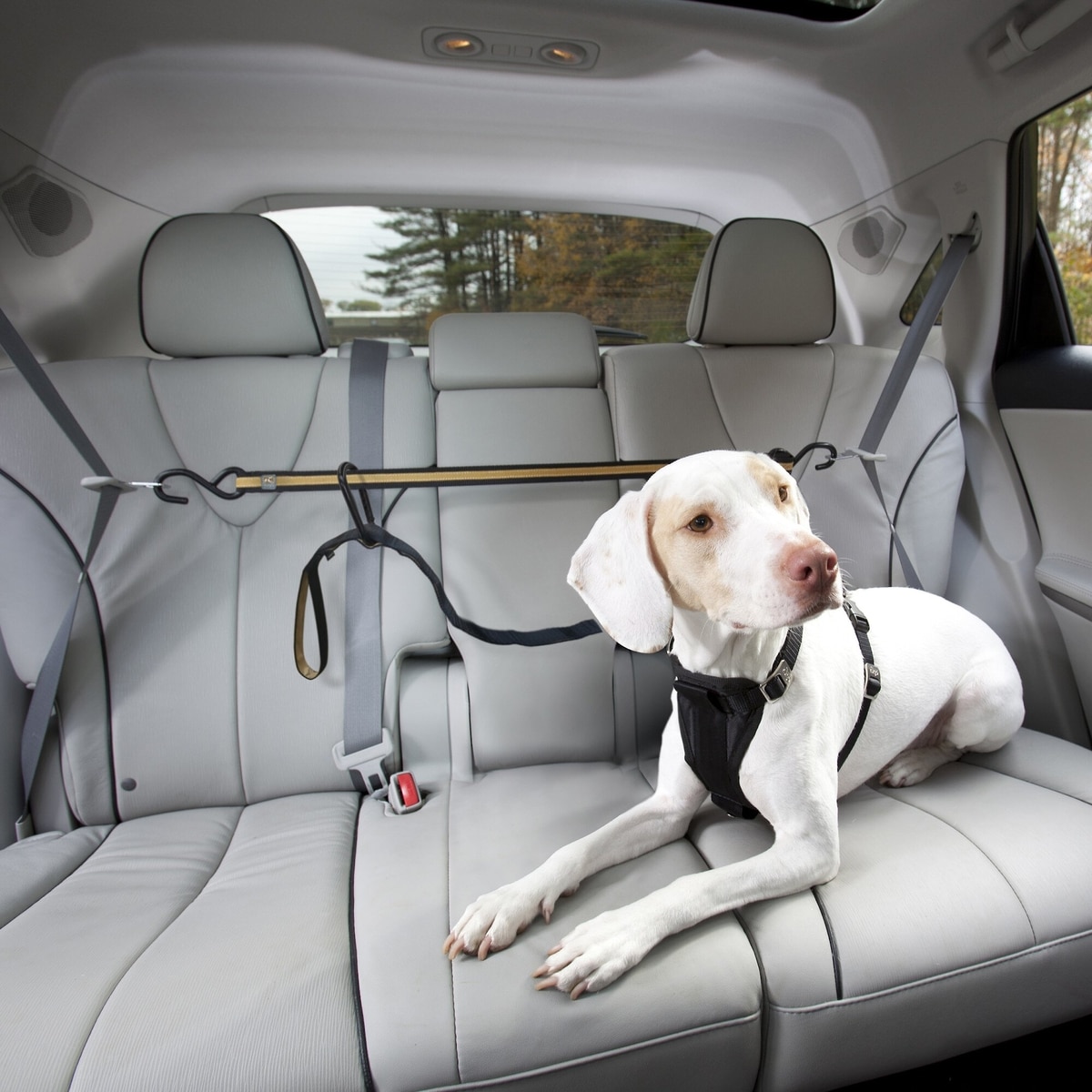

Recommended set up for the Auto Zip Line:

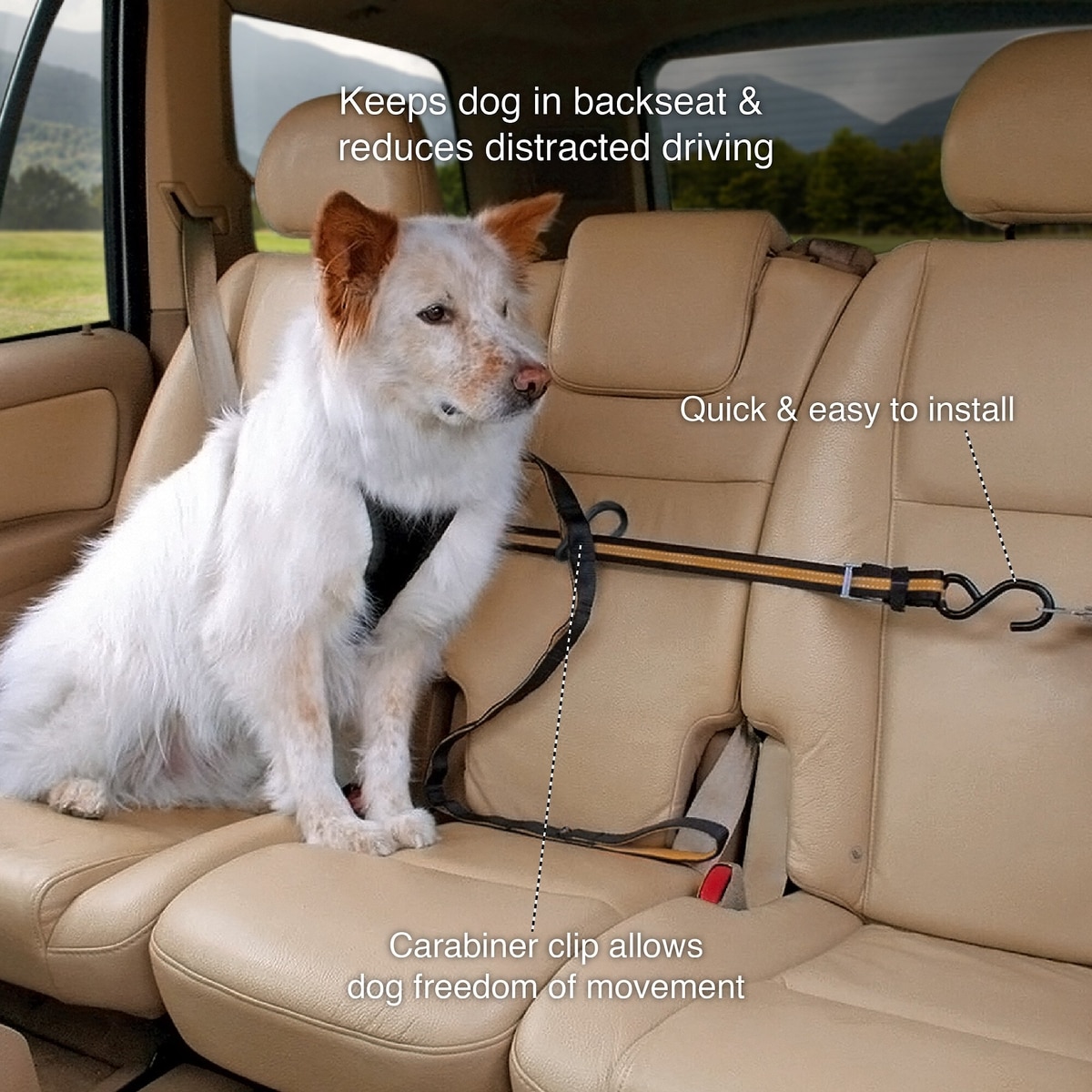

• Hook the two S-hooks onto the rear passenger seat belt tabs. The end of the zip line with the cam buckle should be on the driver’s side.

• With your left hand, lock the rear driver’s side seat belt in place by swiftly pulling down on the seat belt strap.

• With right hand, grab extra zip line webbing and apply constant pressure to the extra webbing to ensure that the seat belt stays in the locked position.

• With left hand, reach over and lock the passenger seat belt in position using the same swift pulling motion.

• With the 2 seat belts in the locked position pull on the extra zip line webbing in your right hand to remove all slack from the zip line.

• Feed extra webbing through metal slide to secure strap tension.

• Roll up extra webbing towards metal slide and secure using bungees and toggle system.

• Tug on each seat belt before attaching the dog to ensure they are in the correct locked position. This should be done before each trip.

• Place the zip line carabiner onto zip line.

• Attach the harness carabiner to your dog’s harness (not included).

• Locate appropriate leash nook that lets your dog sit up and lay down and loop onto the carabiner attached to the zip line.

How long is the zip line?

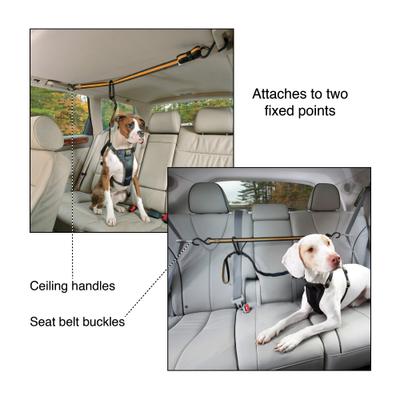

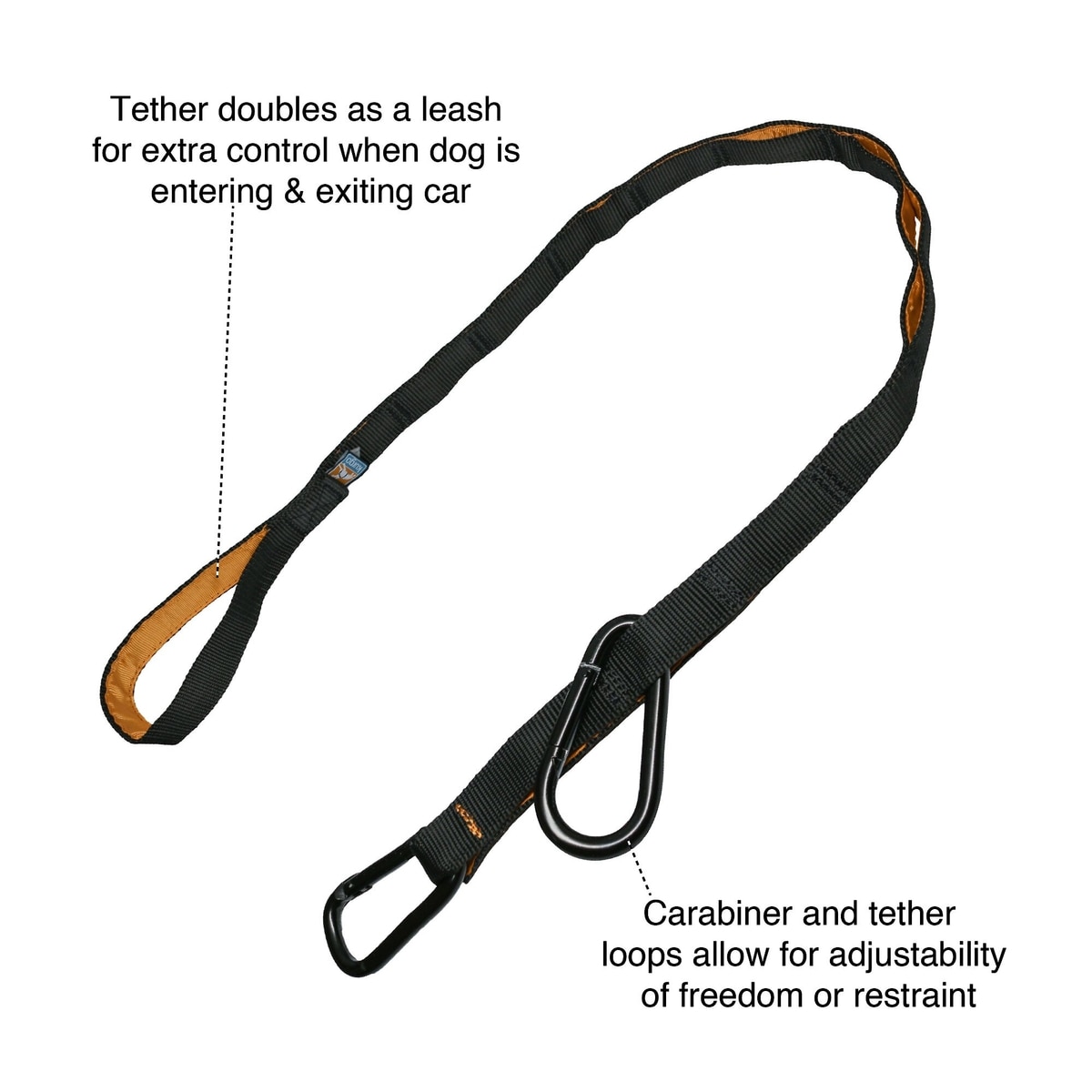

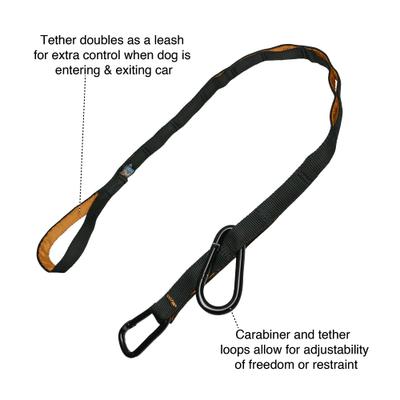

The ZipLine itself can be adjusted between two fixed points from 40" to up to 72" wide. The included 3 foot leash has pockets that allow for a lot of versatility in terms of how much (or how little) freedom of movement a dog is provided when attached to the Auto Zip Line.

What is the material of the Kurgo Auto Zip Line?

The material of the Auto Zip Line is nylon webbing.

How safe is this harness for the dog?

The Auto Zip Line is not a harness it is a restraint system to help prevent distracted driving. It keeps your dog confined to a specific area and not roaming around the car. It can be used in the backseat or the cargo area.
