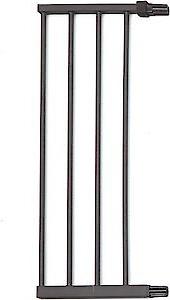

MidWest Extension for 29" Steel Pet Gate, Graphite

Instructions for 3” Gate Extension

1. Begin by determining which extension or combination of extensions is required for your doorway or opening. attach the Top Plastic Connector and Bottom Plastic Connector to the top and bottom of the Extension Rod. NOTE: The insertion point of the Top Connector is ¾” wide, and the insertion point of the Bottom Connector is 5/8” wide.
2. Using a flat head screwdriver, remove the Top Plastic Insert and the Bottom Plastic Insert from the gate frame as shown.
3. Connect the Extension Rod to the gate frame as shown.
4. Install the Top Plastic Insert and Bottom Plastic Insert that were removed in step 2 into the ends of the extension bar’s Top and Bottom Plastic Connector.
5. Once the required extensions are attached to the gate, insert the 4 Threaded spindle Bolts into the ends of the extensions you just assembled and follow the instructions from the original pet gate starting from step 1.

Instructions for 6” and 11” Gate Extensions

1. Begin by determining which extension or combination of extensions is required for your doorway opening. attach the Top Plastic Connector and Bottom Plastic Connector to the top and bottom of the Extension Rod.
2. Using a flat head screwdriver, remove the Top Plastic Insert and the Bottom Plastic Insert from the gate frame as shown.
3. Connect the Extension Rod to the gate frame as shown.
4. Install the Bottom Plastic Insert that was removed in step 2 into the bottom end of the extension bar.
5. Once the required extensions are attached to the gate, insert the 4 Threaded spindle Bolts into the ends of the extensions you just assembled and follow the instructions from the original pet gate starting from step 1.
